Home > Products > Power Generators > 1000W 2000W Power Generators 4500KW Silent Portable Electric Generators 5000KW Diesel Generators

1000W 2000W Power Generators 4500KW Silent Portable Electric Generators 5000KW Diesel Generators

  • 1000W 2000W Power Generators 4500KW Silent Portable Electric Generators 5000KW Diesel Generators
  • 1000W 2000W Power Generators 4500KW Silent Portable Electric Generators 5000KW Diesel Generators
  • 1000W 2000W Power Generators 4500KW Silent Portable Electric Generators 5000KW Diesel Generators
  • 1000W 2000W Power Generators 4500KW Silent Portable Electric Generators 5000KW Diesel Generators

1000W 2000W Power Generators 4500KW Silent Portable Electric Generators 5000KW Diesel Generators

    Unit Price: 585~600 USD
    Min. Order: 10 Set/Sets
    Packaging: Strong carton, generator is protected with ploy bag, wool, 1pc / carton, China DOTON POWER Professional Inverter Generator Set
    Supply Ability: 20000 Set/Sets per Month
    Port: Ningbo/Shanghai

Product Description

1000W 2000W Power Generators 4500KW Silent Portable Electric Generators 5000KW Diesel Generators

Product Parameter

Generating set

Unit

DCH4500S



Rated frequency

Hz

                                             50                                    60



Rated power

kVA

  4.5                                    5.0



Max. power

kVA

                                             5.0                                   5.5



Rated voltage

V

  115/230                            120/240



Rated current

A

                                      39.1/19.6                           41.7/20.8



Rated ratation speed

t/min

                                          3000                                3600



Generator



Pole No.



2



Phase number



Single phase



Excitation mode



Self-exciation and constant voltage(with AVR)



Power factor

COSΦ

1



Insulation mode



F



Engine



Engine type



RD186FAGET



Structure type



Single-cylinder, vertical, 4-stroke,
 air-cooled,direct-injected




Bore x stroke

mm

86x72



Displacement

L

0.418



Compression ratio



19:01



Rated power

kW/(r/min)

5.7                            6.3



Lubricantion system



Pressure splashed



Lube oil brand



Above CD or SAE 10W-30W,15W-40



Lube capacity

L

1.65



Starting system



12V Electric starter



Charging generatior capacity



                                              12V                           36Ah



Fuel consumption ratio



 260.8                      265.7



Fuel type



Diesel : 0# (summer), -10# (winter), -35# (chillness)



Genset



Panel type



General panel



Output

Receptable

2-Single phase



Connection pole

without



Noise level(7m)

dB(A)

72



Fuel tank capacity

L

15



Overall dimensions

mm

910x530x740



Net weight

kg

145








Application

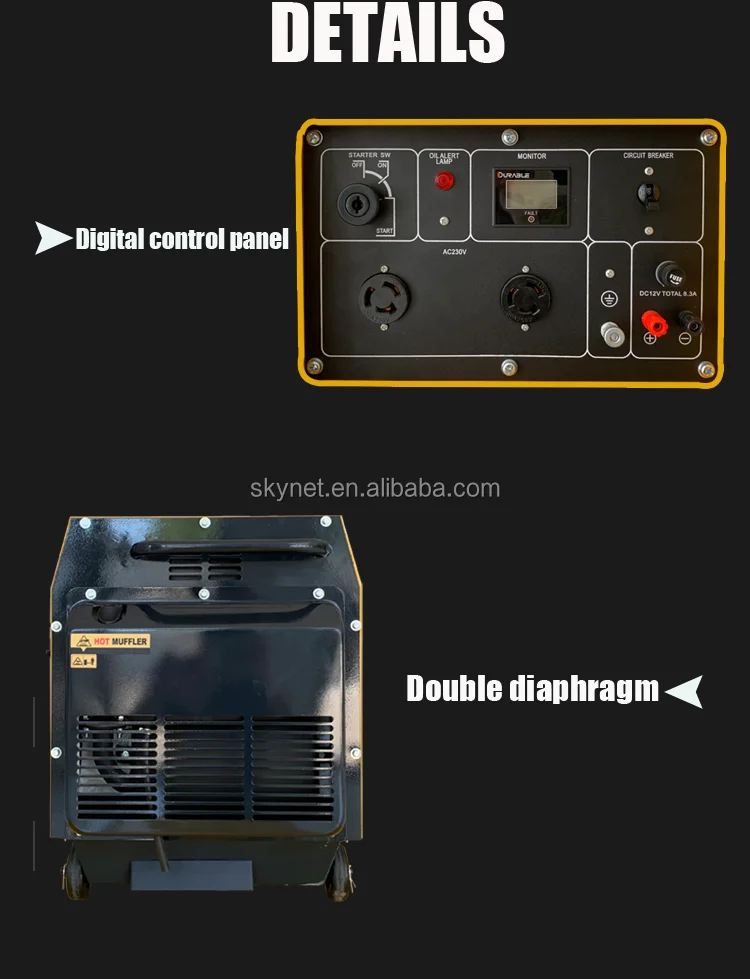

Product Photography








Our Company

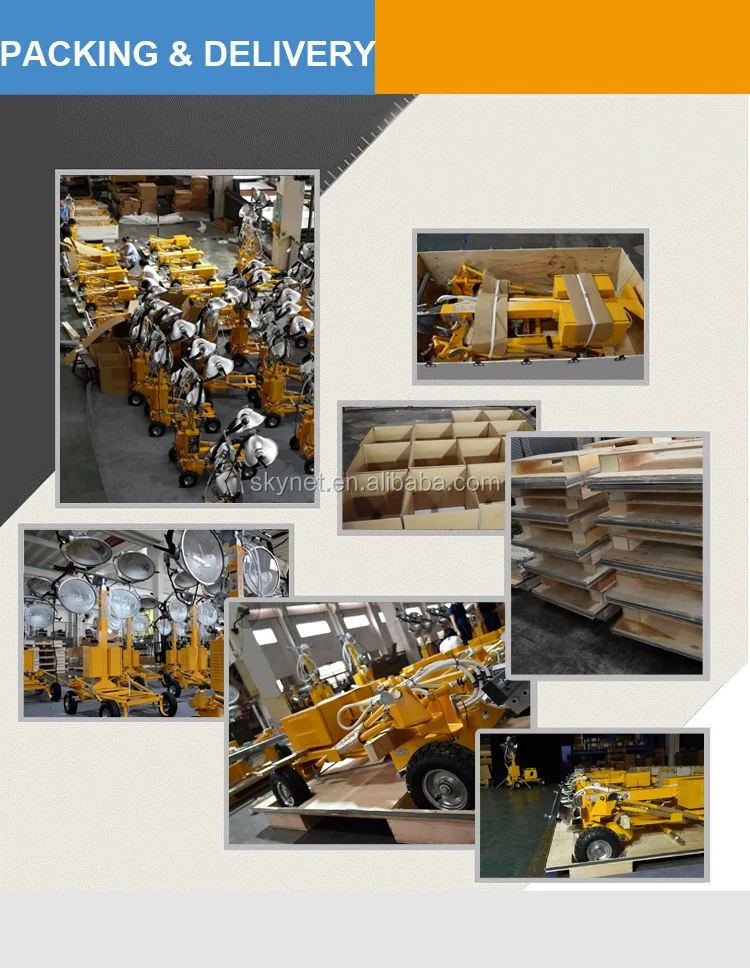

Packaging & Shipping



Certifications





Contact Us











Wuxi Doton Power

 DOTON POWER has specialized in the developing, manufacturing and sale of excellent generators, including portable diesel generator and professional Diesel Generators supplying, commissioning from 10 to 2500KVA through more than 10 years of experience. DOTON POWER shall solidify its leading role in generators through innovation of new products in the future.
